LM166
Model Details

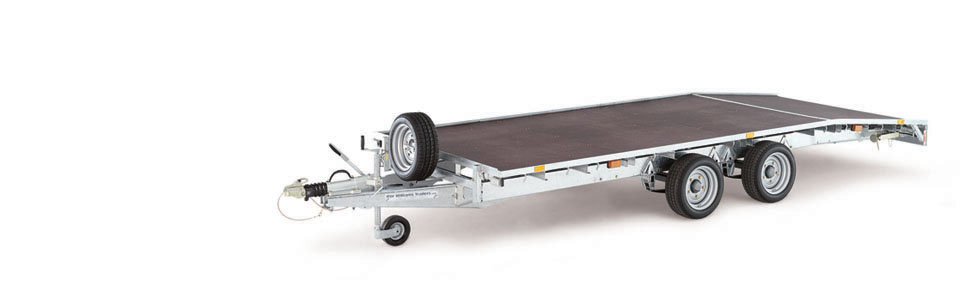

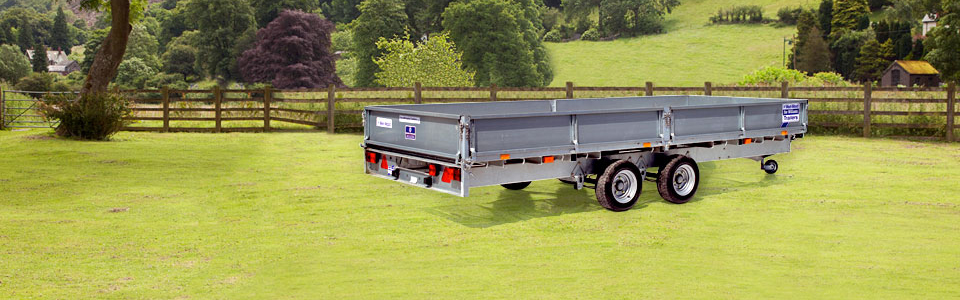

Spillane Trailers presents the Ifor Williams LM166 Flatbed Trailer for sale in Cork. Its sturdy and solid build can carry loads up to 3500kg and its extra length allows for long loads to be transported. The Ifor Williams LM166 measures 6.2 meters in length and 2.10 meters in width, making it a flexible all rounder for everyday use.
The trailer is available with the option of aluminium treadplate covering, along with recessed lashing rings if required. The LM166 is easy to maintain and due to its durable design and is fitted with a tough resin-coated plywood platform, spare wheel and jockey wheel as standard.

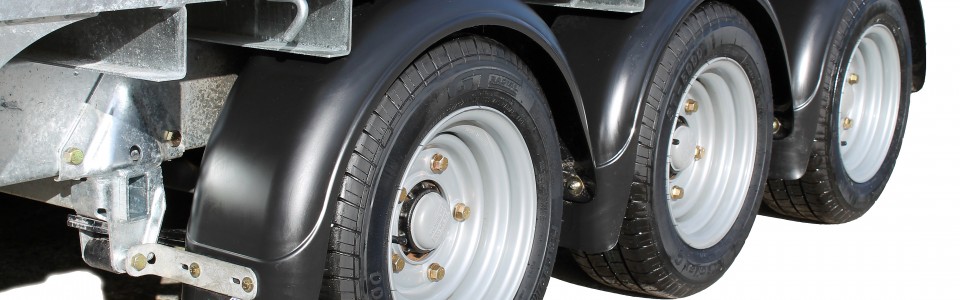

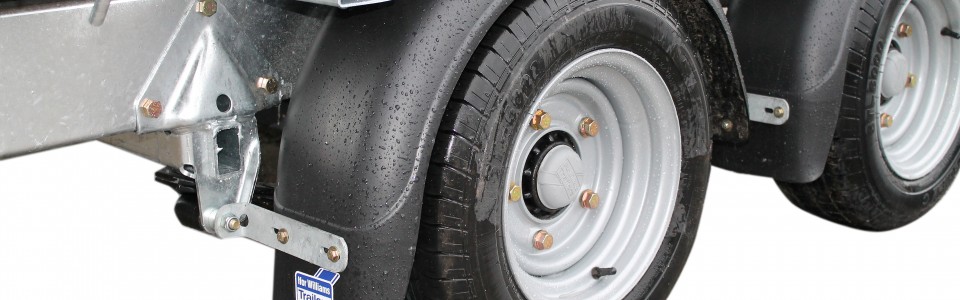

The trailer can be further enhanced with accessories such as a ladder rack, dropsides, headboards or mesh side extensions. In accordance with new Eu regulations, all Ifor Williams Flatbed trailers are fitted with Mudguards as standard over each wheel to reduce road spray.
Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
---|---|---|---|---|---|---|---|
LT85 | 145/70R13C | 2000kg | 450kg | 2.44m/8′ | 1.52m/5′ | 3.80m | 1.60m |
LT105 | 145/70R13C | 2000kg | 510kg | 3.01m/9’9" | 1.68m/5’5" | 4.35m | 1.75m |
LT125 | 145/70R13C | 2000kg | 565kg | 3.62m/11’9" | 1.68m/5’5" | 5.00m | 1.75m |
LT106 | 145/70R13C | 2000kg | 555kg | 3.01m/9’9" | 1.98m/6’5" | 4.35m | 2.10m |
LT126 | 145/70R13C | 2000kg | 615kg | 3.62m/11’9" | 1.98m/6’5" | 5.00m | 2.10m |
LT146 | 145/70R13C | 2000kg | 660kg | 4.23m/13’9" | 1.98m/6’5" | 5.60m | 2.10m |
LM85 | 195/60R12C | 2700kg | 495kg | 2.44/8′ | 1.52m/5′ | 3.80m | 1.60m |
LM105 | 195/60R12C | 2700kg | 575kg | 3.01m/9’9" | 1.68m/5’5" | 4.35m | 1.75m |
LM125 | 195/60R12C | 2700kg | 620kg | 3.62m | 1.68m | 5.00m | 1.75m |
LM85 | 195/60R12C | 3500kg | 525kg | 2.44m/8′ | 1.52m/5′ | 3.80m | 1.60m |
LM105 | 195/60R12C | 3500kg | 605kg | 3.01m/9’9" | 1.68m/5’5" | 4.35m | 1.75m |
LM125 | 195/60R12C | 3500kg | 650KG | 3.62m/11’9" | 1.68m/5’5" | 5.00m | 1.75m |
LM106 | 195/60R12C | 3500kg | 620kg | 3.01m/9’9" | 1.98m/6’5" | 4.35m | 2.10m |
LM126 | 195/60R12C | 3500kg | 675kg | 3.62m/11’9" | 1.98m/6’5" | 5.00m | 2.10m |
LM146 | 195/60R12C | 3500kg | 735kg | 4.23m/13’9" | 1.98m/6’5" | 5.60m | 2.10m |
LM166 | 195/60R12C | 3500kg | 795kg | 4.77m/15’6" | 1.98m/6’5" | 6.20m | 2.10m |
LM186 | 195/60R12C | 3500kg | 855kg | 5.47m/17’9" | 1.98m/6’5" | 6.85m | 2.10m |
LM126T (Tri Axle) | 195/60R12C | 3500kg | 785kg | 3.62m/11’9" | 1.98m/6’5" | 5.00m | 2.10m |
LM146T (Tri Axle) | 195/60R12C | 3500kg | 845kg | 4.23m/13’9" | 1.98m/6’5" | 5.60m | 2.10m |
LM166T (Tri Axle) | 195/60R12C | 3500kg | 905kg | 4.77m/15’6" | 1.98m/6’5" | 6.20m | 2.10m |
