GH94

Model Details

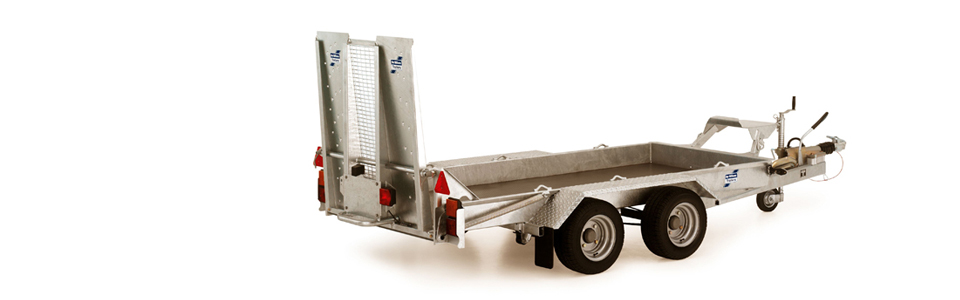

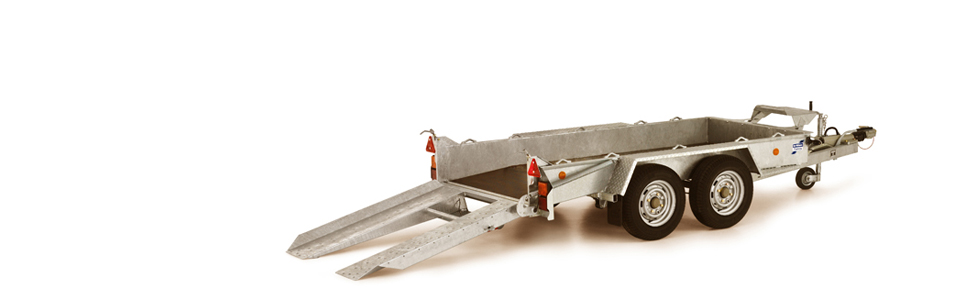

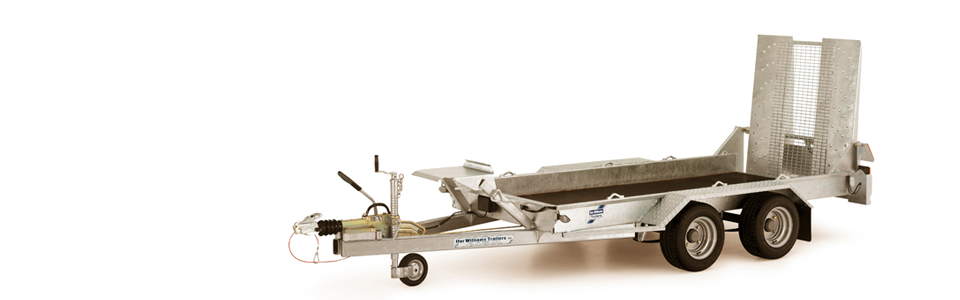

Spillane Trailers present the Ifor Williams GH94 Plant Trailers for sale in Cork. The GH94 trailer is equipped with a dual axle which delivers an excellent payload of 2200kg. This feature is ideal for users that have a restricted towing capacity on their vehicle. The GH94 is available with two tyre options (10" & 13"). Ifor Williams models fitted with larger tyres, are manufactured to a Beavertail specification, to keep the low loading angle of 13°.

GH models plant trailer models are constructed with galvanized, welded construction and leaf spring suspension which allows them to withstand tough conditions. With a solid, thick resin coated plywood platform (24mm), the GH94 is particularly suitable for transporting rollers as well as excavators.

With its extra length the trailer allows for more loading space behind the rear axle, which better suits machines with a central centre of gravity, such as the increasingly popular range of one tonne hi-tip dumpers. The added length provides more space for carrying excavator buckets and caters for excavators with longer dipper arms.

Model Tyres Gross Weight Unladen Weight Internal Length Internal Width Overall Length Overall Width
GH64 195/55R10C 1500kg 270kg 1.88m/6’1" 1.23m/4′
GH94 195/55R10C 2700kg 500kg 2.79m/9’1" 1.31m/4’3"
GH94BT 165R13C 2700kg 530kg 2.79m/9’1" 1.31m/4’3"
GH1054 185/70R13C 3500kg 660kg 3.04m/9’11" 1.62m/5’4"
